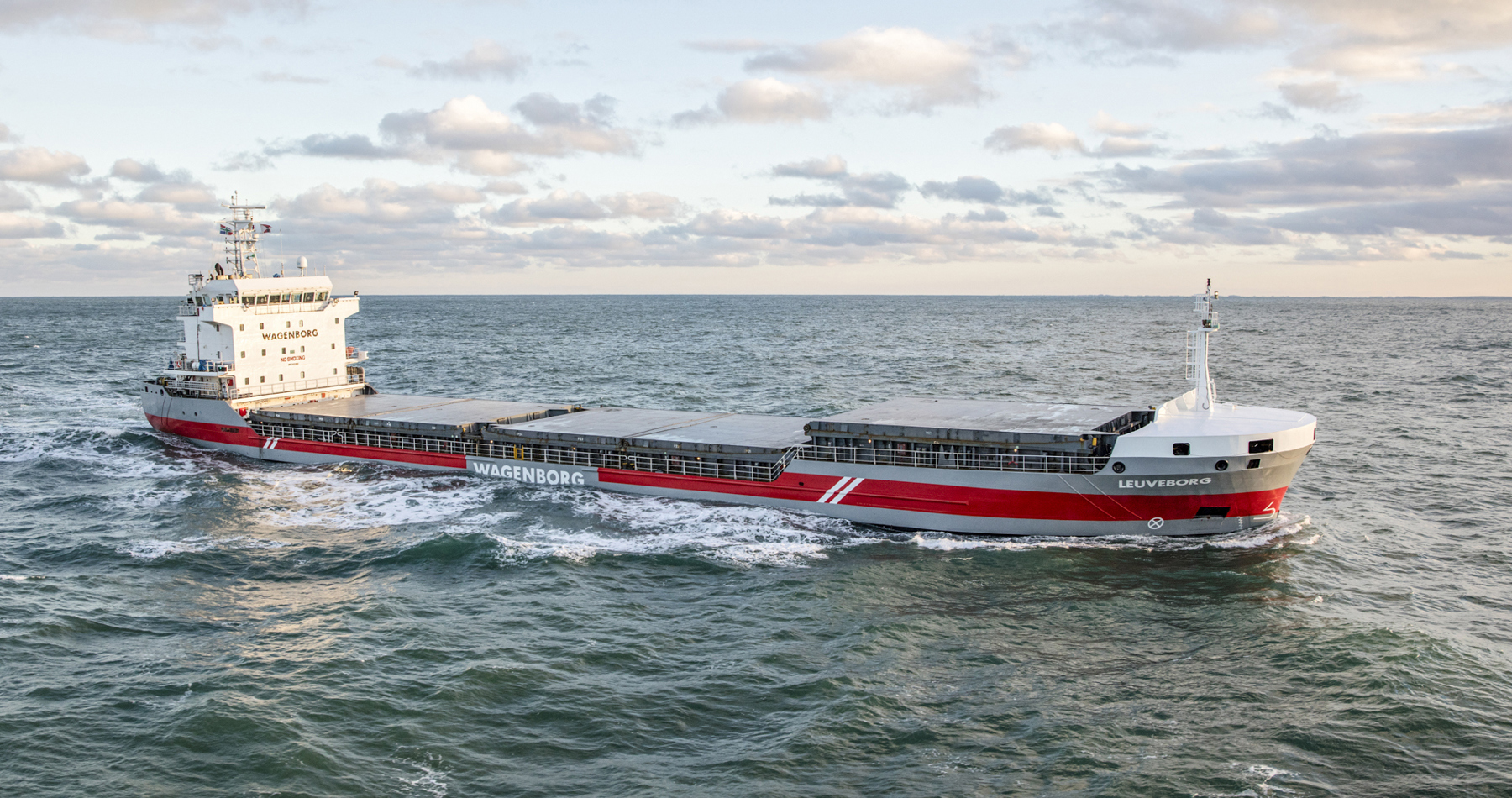

Ll Class

LL-Class

Multipurpose Dry Cargo Carrier | 3 Vessel | 1B
Length o.a.: 108.24 | Beam: 18.2
Hold capacity (cbft)
360.202
DWCC (t)
7.700
Download brochure Contact your local chartering office

Key features

Number of vessels 3
Flag Dutch
Trading Area Europe
Open hatch, fully box
Ice class IB
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Nanjing Huatai Shipyard Co., Ltd.
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo (147kN/m2) Unrestricted navigation +AUT-UMS, ICE CLASS 1B
Ice class
IB
Port of Registry
Delfzijl
Flag
Dutch
DWAT
8.117
DWCC Summer
7.700
Length over all
108.24
Breadth over all
18.2
Draft summer
7.01
Draft in ballast
2.200
TPC SSW
17.8
Air draft in ballast
28.5
Depth (moulded)
9
Distance WL-HC in ballast
8.9
GT
5.598
NT
2.883

Cargo capacities

Total cubic feet capacity
360202 ft3 grain/bale

Holds/hatches

3 Holds / 3 Hatches, all types are Fully open hatch. Box shaped and double skinned.

Cement Holes
Positions of cement holes in the following hatches on starboard site:
Hatch no. 2, 6 and 10 : 2,91 m of front hatch and 2,25 m of site hatch.
Positions of cement holes in the following hatches on port side:
Hatch no 1, 3 and 7: 2,65 m of front hatch and 2,25 m of site hatch.

Cement holes by dm
Outside 830 mm
inside 580 mm

Each hole:12 bolts M20
Length of bolt 60 mm.

Hold #1

Dimensions
17.5 x 15.2 x 11.4
Luiken
17.5 x 15.2 x 11.4

Hold #2

Dimensions
25.9 x 15.2 x 9.2
Luiken
25.9 x 15.2 x 9.2

Hold #3

Dimensions
25.2 x 15.2 x 9.2
Luiken
25.2 x 15.2 x 9.2

Electrical ventilaton

Abt. 6 air changes per hour basis empty hold. Holds are fitted with dehumidifier system.

Tank capacities

HFO
293
MGO
69
Water ballast capacity
2200
Fresh Water
100

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
MAK 6M32C 3000 600
Bow thruster
280

Check the availability of this ship type
Call us +31 596 636 911
Request open positions

Vessels in this series

Related ship series

Z Class
Z-Class
3 Vessel
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 118.55 | Beam: 15.2
Hold capacity (cbft) 329.633
DWCC (t) 7.500
More information
Contact your local chartering office
L Class
L-Class
4 Vessel
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 122.34 | Beam: 14.4
Hold capacity (cbft) 323.779
DWCC (t) 6.900
More information
Contact your local chartering office

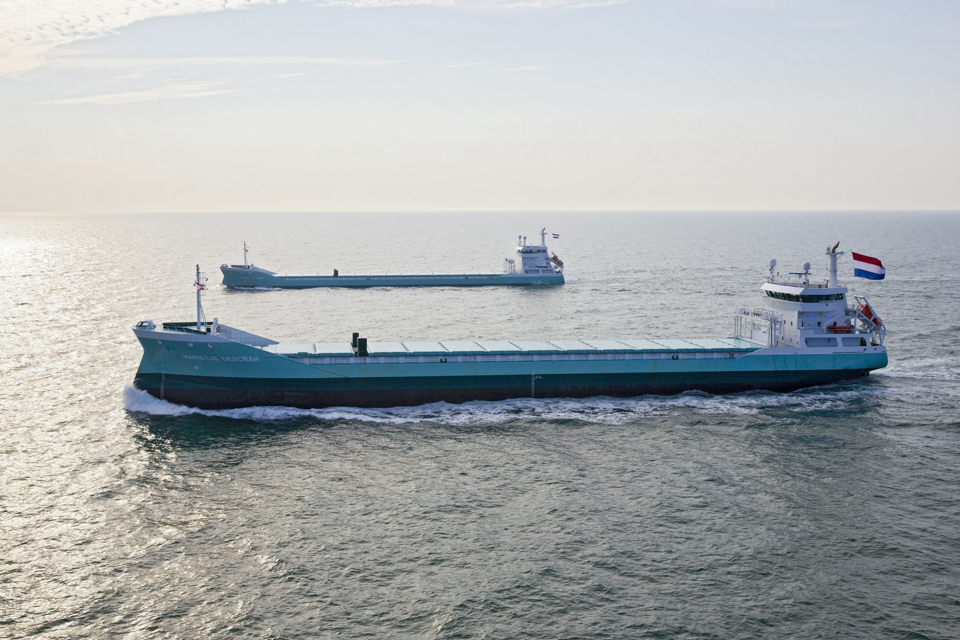

Marietjes
