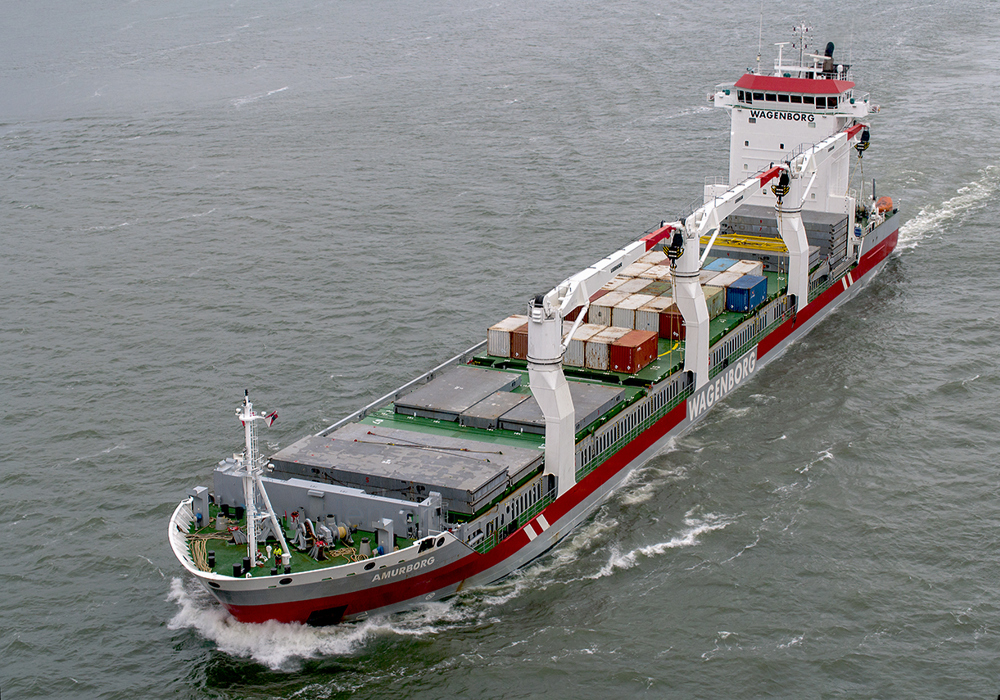

Amurborg
Openhatch fully box/ double skinned Ice Class 1A, Geared, tween-decker convertible into single-decker. Lakes / Grain/ CO2 fitted.
Details
General
| Call sign | P.B.R.O. |
| IMO number | 9466336 |
| Built | 2011 |
| Shipyard | Hudong-Zhonghua Shipbuilding Group Co. Ltd. |
| Classification | Lloyd's Register |
| Class notations | +100A1 Strengthened for Heavy Cargoes and Holds may be empty, Container Cargoes in all Holds and on Upper Deck and on all Hatch Covers, *IWS LI, ICE CLASS 1A FS at a draught fo 9,895m , LMC, UMS, NAV1 |
| Ice class | Finnish /Swedish 1A |
| Port of registry | Delfzijl |
| Flag | Dutch |
Main particulars
| DWCC (summer) | 15750 ton |
| Length over all | 142.96 m |
| Breadth over all | 21.5 m |
| Draughts | 9.69 |
| TPC SSW | 27.9 |
| Air draft (in Ballast) | 35.4 |
| Depth (moulded) | 13.3 |
| Distance WL-HC in ballast | 10.5 |
| GT | 11885 |
| NT | 5650 |
Cargo capacities
| Total cubic feet capacity | 707633 ft3 grain/bale |
Holds/hatches
2 Holds/ 2 Hatches, both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - except box structures due to vessel's outer shape. Vessel is equipped with MacGregor navire hydraulic steel pontoon hatches.
Hold #1
| Dimensions | 35.8 x 17.75 x 13.5 |
| Luiken | 35.8 x 17.75 |
Hold #2
| Dimensions | 52.1 x 17.75 x 13.5 |
| Luiken | 52.1 x 17.75 |
Electrical ventilaton
abt. 12 air changes per hour basis empty holds. Both holds fitted with dehumidifier system.
Tween decks
The vessel is equipped with a full tweendeck, consisting of loose tweendeck pontoons of each: Tweendeck sizes: No. 1 9,90m x 3,22m x 0,90m weight abt. 6 tons No. 2 + 3 12,57m x 6,48m x 0,90m weight abt. 25 tons No. 4 - 14 17,65m x 6,48m x 0,90m weight abt. 33 tons Tweendecks can be used as vertical bulkheads at every 20ft interval. Strengths: Uniform TEU / FEU Max pressure tanktop 20,00 mt/sqm 71 / 75,5 mt(OSHA) or 120 /130 mt (non OSHA) Max pressure tweendeck 4,00 mt/sqm ----- Max pressure weatherdeck 1,75 mt/sqm 50 / 60 mt
Tank capacities
| HFO | 1350 m3 |
| MGO | 215 m3 |
| Water ballast capacity | 5490 m3 |
| Fresh water | 280 m3 |
Speed/consumption
14,0 knots - 20 mts/day These figures are about and based on 7,60 m draft, clean bottom, even keel, deep and currentless water, calm sea and max wind force Beaufort 2 / Douglas 2 and maximum sea temperature 28 /29 degrees Celsius, and shaft generator connected. Consumption in port Gear working 3,0 mts MGO Idle 1,4 mts MGO For manoeuvring and navigation in port / narrow water and during slow steaming at sea vessel burns MGO.
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
| Main engine | Wartsila 6L46F , 7500 kW at 600 RPM |
| Reduction gear | 1 x Flender, GCSP 1115 |
| Propeller | Wärtsilä/ lips, 4 blades, 4800mm |
| Bow thruster | 750 kW |
