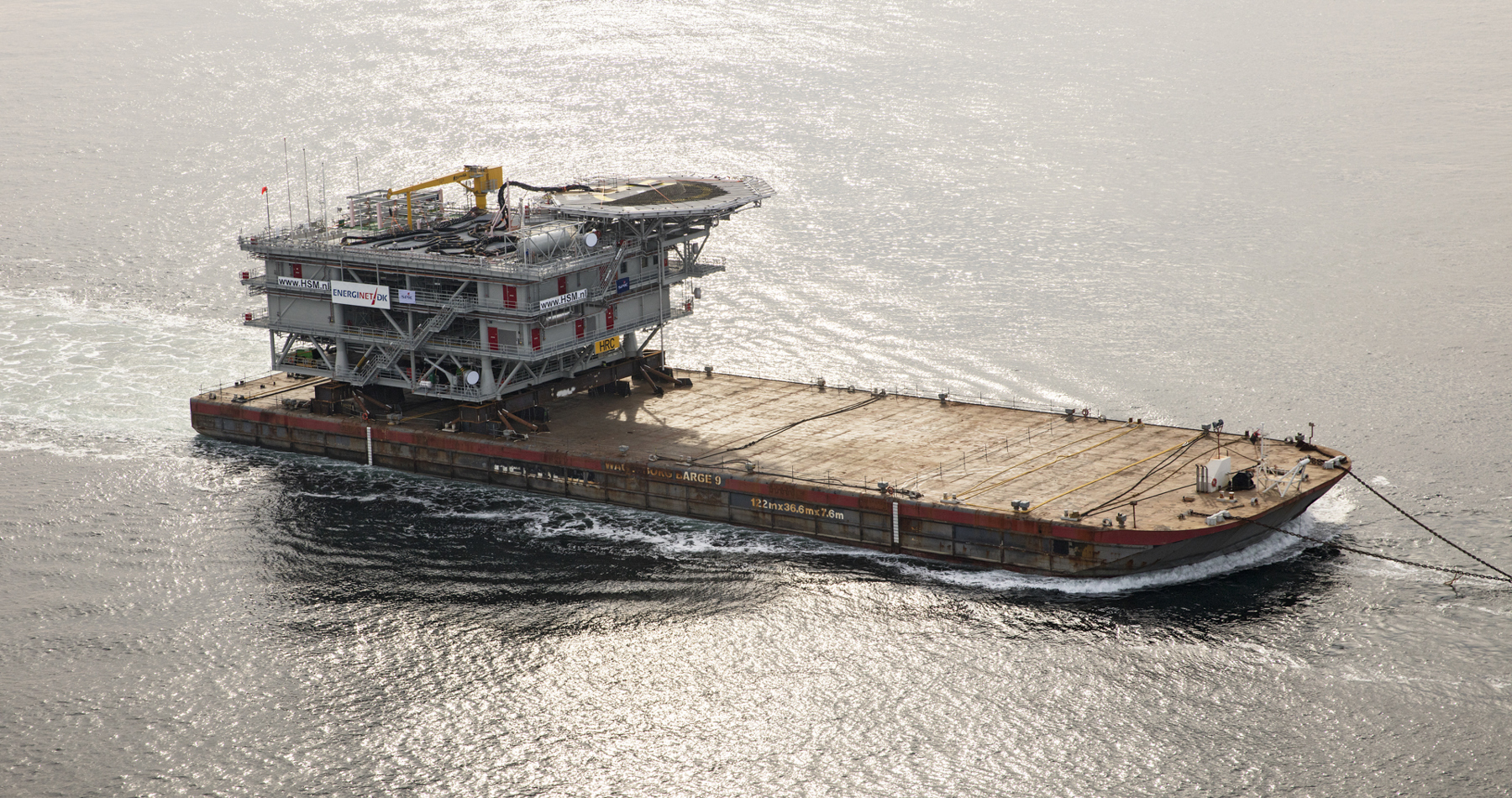

20.000 dwt seagoing pontoon
Pontoon | 2 Vessel |
Length o.a.: 122,0 | Beam: 36,6
Key features
Number of vessels
2
Flag
NL
Trading Area
Deck area
4426
Main particulars
Classification
Lloyd’s Register
Class notations
100 A1 Pontoon, Unrestricted Service
Port of Registry
Delfzijl
Flag
NL
DWAT
20
Length over all
122,0
Breadth over all
36,6
Depth (moulded)
7,60
GT
9.119
NT
2.735
Cargo capacities
Deck area
4426
Holds/hatches
Deck equipment
2x Smit towing brackets 300t incl. fairleaders; 1x Forerunner stud link chain 5m x O73mm, 150t; 2x Bridle stud link chain 27,5m x O73mm, 150t; 4x Shackle Green Pin 150t; 1x triangle plate, 300t; 1x Retrieving wire 50m x O25mm + 17t shackle; 1x Bridle hydraulic retrieving winch 10t x 9m/min. 15t stall pull;
Vessels in this series
- Wagenborg barge 11 2009
- Wagenborg barge 9 2009
