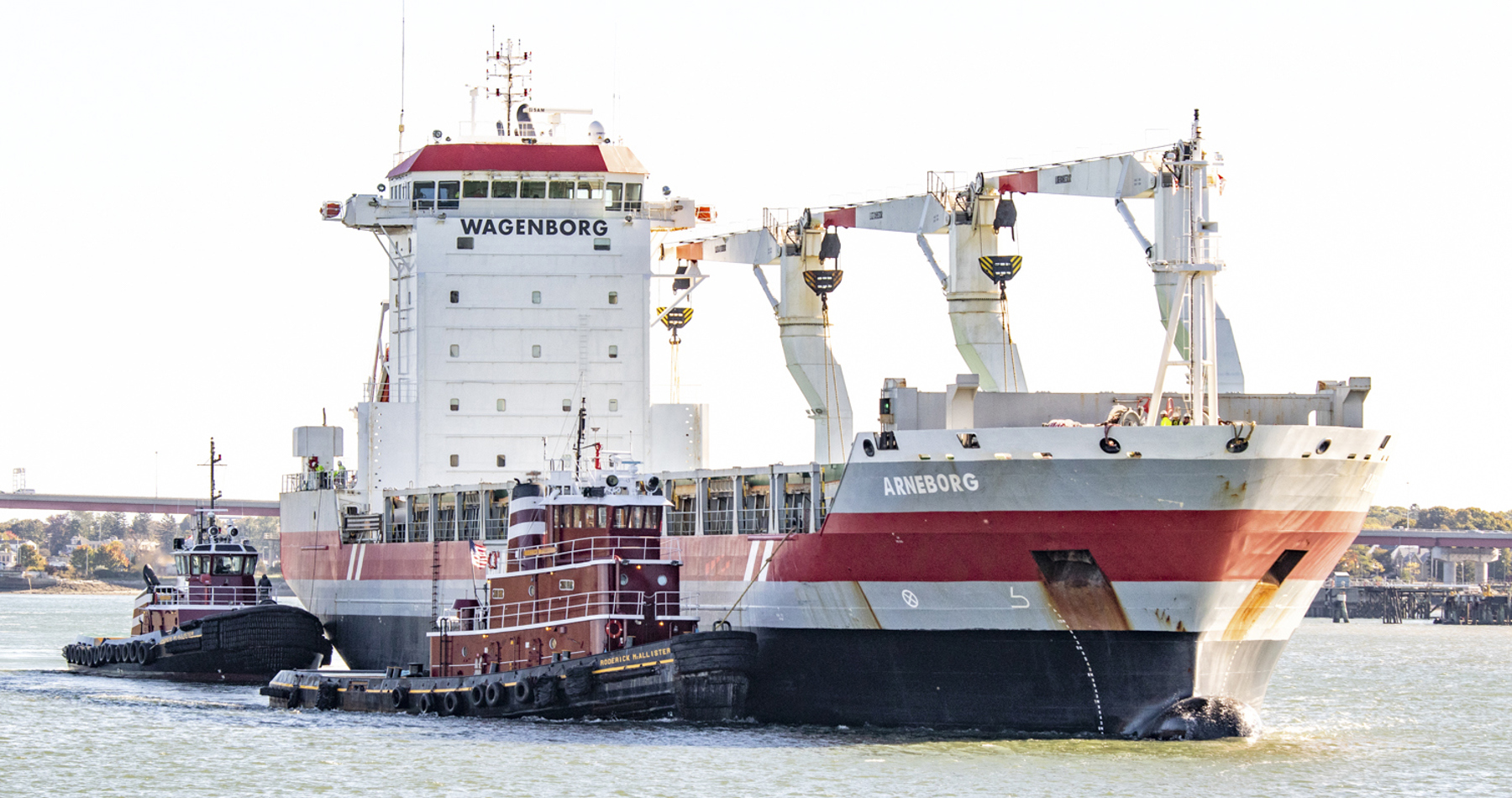

Arneborg
- Hold capacity (cbft)
- 707.633
- DWCC (t)
- 15.750
Key features
Main particulars
Cargo capacities
Holds/hatches
2 Holds / 2 Hatches - Both types are: Fully openhatch - no understow / fully box and double skinned. Fully square - exce
pt box structures due to vessel's outer shape.
Vessel is equipped with MacGregor navire hydraulic steel pontoon hatches.
Hold #1
Hold #2
Electrical ventilaton
12 air changes per hour basis empty holds
Both holds fitted with dehumidifier system.
Tank capacities
Speed/consumption
3 cranes fixed on portside - each with a capacity of 60 mts at a reach of upto 16m.
or capacty of 40 mts at a reach of upto 28m.
The cranes can be combined to up to 120 mts but not the entire holds/ hatches can be served with this maximum lifting ca
pacity. Free distance between the cranes is 31 meters. Vessel fitted with lifting beam (weight about 10 tons)
Hoisting speed 60 mts SWL 40 mts SWL
Reeving 3 - fall 2 - fall
SWL 0 - 14 m per min. 0 - 22 m per min.
Empty hook 0 - 23 m per min. 0 - 35 m per min.
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Vessels in this series
- Adriaticborg 2011
- Alamosborg 2011
- Alaskaborg 2012
- Albanyborg 2010
- Amazoneborg 2007
- Americaborg 2007
- Amstelborg 2006
- Amurborg 2011
- Andesborg 2011
- Aragonborg 2010
- Arneborg 2006
- Arubaborg 2010
- Atlanticborg 2012
- Avonborg 2012
- Azoresborg 2010
