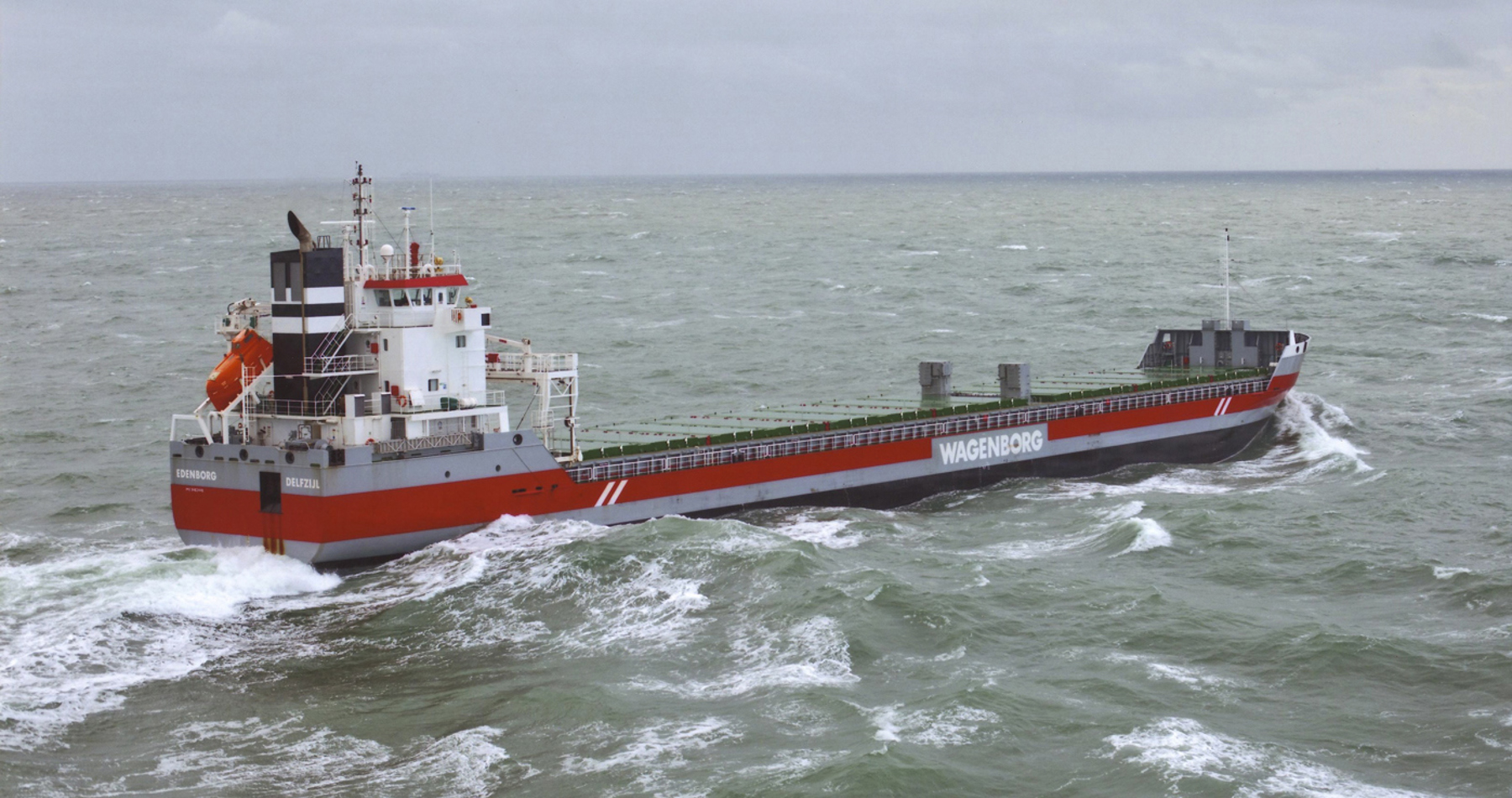

Edenborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 137.9 | Beam: 15.87
- Hold capacity (cbft)
- 481.837
- DWCC (t)
- 10.200
Key features
Number of vessels
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Koninklijke Niestern Sander
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo ([inner bottom: 147 kN/m2]); Container ship, Unrestricted navigation + AUT-UMS, SYS-NEQ, MON-SHAFT, ICE CLASS IA
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
11.197
DWCC Summer
10.200
Length over all
137.9
Breadth over all
15.87
Draft summer
7.98
Draft in ballast
4.222
TPC SSW
20
Air draft in ballast
30.63
Depth (moulded)
11
Distance WL-HC in ballast
9.05
GT
7.196
NT
3.607
Cargo capacities
Total cubic feet capacity
481837 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box
structures in fore and aft part due to vessel's outer shape.
Hold #1
Dimensions
41.44 x 13.2 x 11.23
Luiken
41.44 x 13.2 x 11.23
Hold #2
Dimensions
54.76 x 13.2 x 11.23
Luiken
54.76 x 13.2 x 11.23
Electrical ventilaton
Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de
humidifier system.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Tank capacities
HFO
881
MGO
72
Water ballast capacity
4222
Fresh Water
56
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L32C 4500 750
Reduction gear
1 x Flender
Propeller
Single ccp, 4 blades, 4.200 mm
Bow thruster
700
