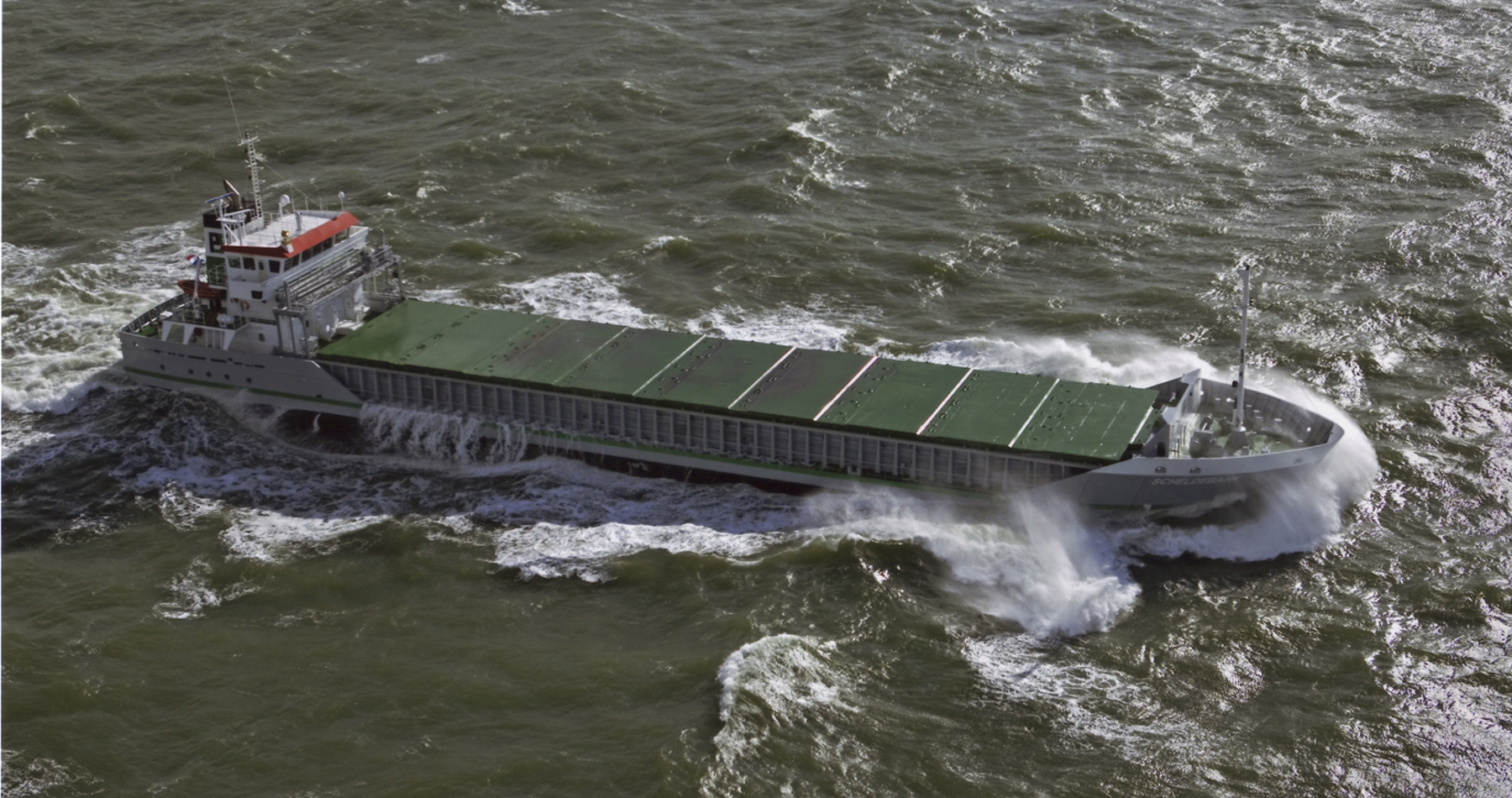

Scheldebank
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 89.78 | Beam: 14
- Hold capacity (cbft)
- 211.000
- DWCC (t)
- 4.300
Key features
Number of vessels
3
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Ferus Smit Leer GmbH
Classification
Bureau Veritas
Class notations
1 +HULL + MACH, General cargo ship -heavycargo (147 kN/m2 on tank top); Container ship, Unrestricted navigation + AUT-UMS, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
4.539
DWCC Summer
4.300
Length over all
89.78
Breadth over all
14
Draft summer
5.95
Draft in ballast
1.828
TPC SSW
0
Air draft in ballast
25.9
Depth (moulded)
7.5
Distance WL-HC in ballast
6
GT
2.999
NT
1.643
Cargo capacities
Total cubic feet capacity
211000 ft3 grain/bale
Holds/hatches
1 Hold/ 1 hatch type: Both types are fully open hatch - no understow. Fully box and double skinned.
Vessel is equipped with Cementholes.
Hatches with cement holes : 1, 3, 5, 7 and 9.
Ø of holes are 47 cm each.
Hold #1
Dimensions
59 x 11.5 x 9
Luiken
59 x 11.5 x 9
Electrical ventilaton
Hold ventilation about 6 air changes per hour.
Hold is fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
325
Water ballast capacity
1828
Fresh Water
45
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 8M25 2640 0
Bow thruster
275
Vessels in this series
- Scheldebank 2007
- Skagenbank 2005
- Steenbank 2005
