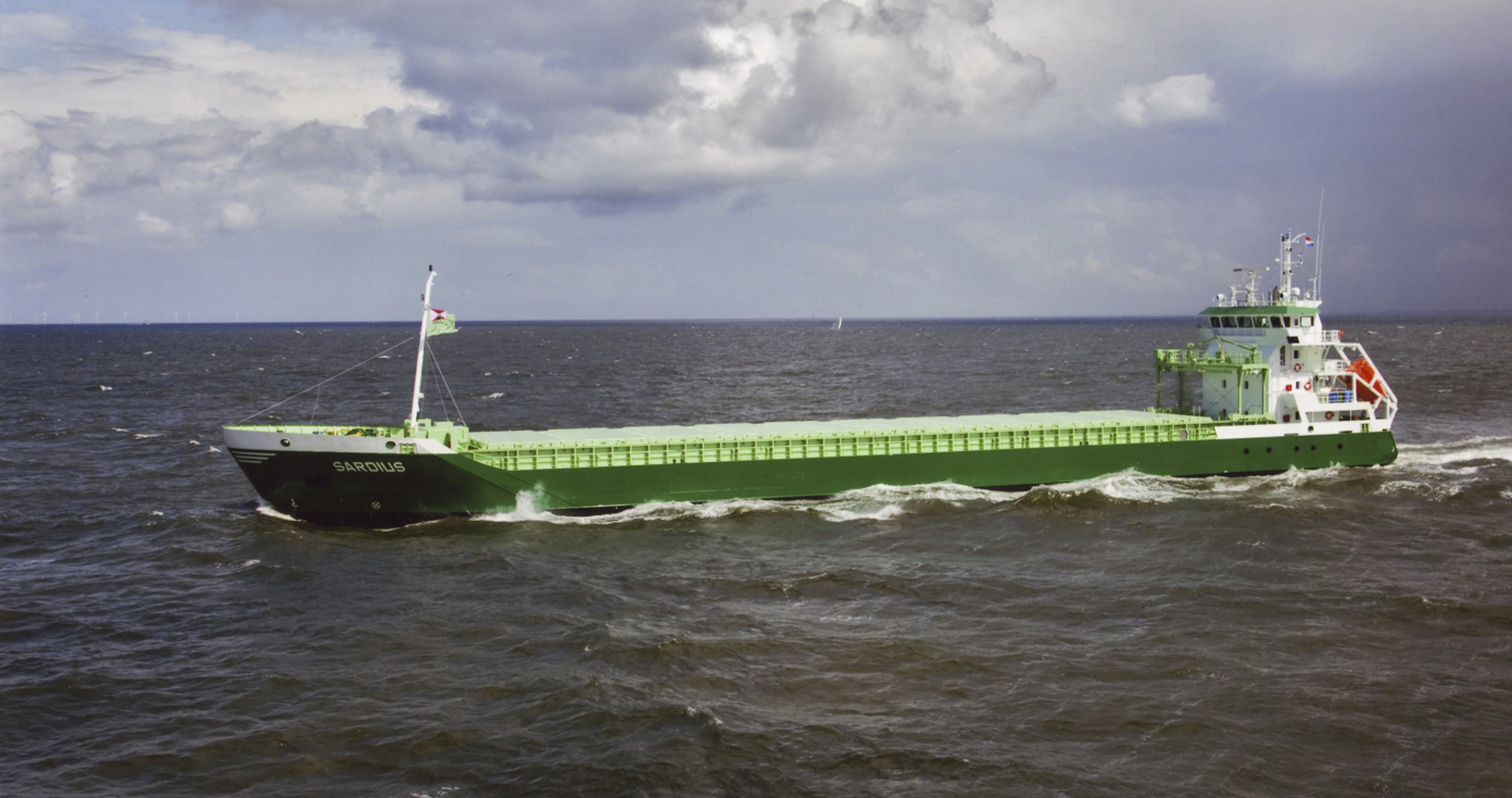

Gooteborg
General Cargo | Vessel | Finnish /Swedish 1A
Length o.a.: 99.99 | Beam: 13.35
- Hold capacity (cbft)
- 234.000
- DWCC (t)
- 4.850
Key features
Number of vessels
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Bureau Veritas
Class notations
1 + HULL + MACH, General cargo ship -heavycargo (147 kN/m2) -equipped for carriage of containers, Unrestricted navigation, + AUT-UMS, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
5.200
DWCC Summer
4.850
Length over all
99.99
Breadth over all
13.35
Draft summer
6.162
Draft in ballast
1.909
TPC SSW
12.2
Air draft in ballast
24
Depth (moulded)
9.1
Distance WL-HC in ballast
7
GT
3.739
NT
1.491
Cargo capacities
Total cubic feet capacity
234000 ft3 grain/bale
Holds/hatches
1 Hold/ 1 Hatch, both types are: fully open hatch - no understow. Fully box and double skinned.
VEssel is equipped with Coops&Nieborg hatch coverpontoons.
Hold #1
Dimensions
61.8 x 11.2 x 9.6
Luiken
61.8 x 11.2 x 9.6
Electrical ventilaton
Hold ventilation abt. 6 air changes per hour basis empty hold. Hold is fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
366
Water ballast capacity
1909
Fresh Water
42
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L20 1800 1500
Propeller
4 bladed, pitch propeller, BCP 850 single, Ø 2950 mm with Nozzle
Bow thruster
280
Vessels in this series
- Gaastborg 2012
- Geulborg 2010
- Gooteborg 2011
- Klaverbank 2011
