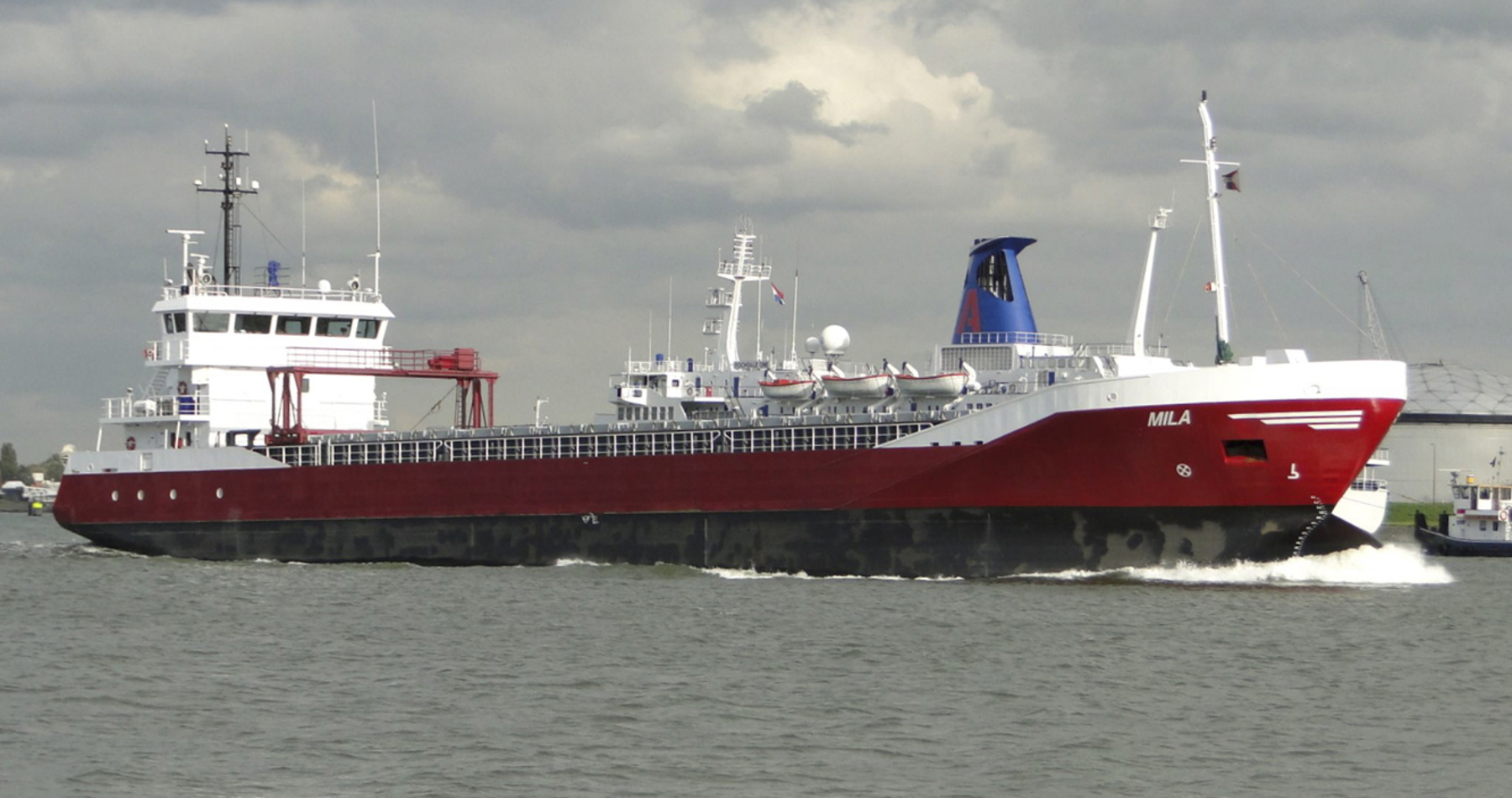

Mila
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 89.99 | Beam: 12.5
- Hold capacity (cbft)
- 174.063
- DWCC (t)
- 3.350
Key features
Number of vessels
10
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Lloyd's Register
Class notations
100 A1 Strenghtened for Heavy cargoes, Container Cargoes in all Holds and on all Hatch Covers, Bottom Strengthened for Loading and Unloading Aground. + LMC, UMS
Ice class
IA
Port of Registry
Alkmaar
Flag
Dutch
DWAT
3.638
DWCC Summer
3.350
Length over all
89.99
Breadth over all
12.5
Draft summer
5.3
Draft in ballast
1.466
TPC SSW
10
Air draft in ballast
22.75
Depth (moulded)
8
Distance WL-HC in ballast
6
GT
2.528
NT
1.053
Cargo capacities
Total cubic feet capacity
174063 ft3 grain/bale
Holds/hatches
1 Hold / 1 Hatch. Both types ares: Fully open hatch - no understow. Fully box and double skinned (except narrowing fore/
aft. part)
Hold #1
Dimensions
60 x 10.3 x 8.15
Luiken
60 x 10.3 x 8.15
Electrical ventilaton
Hold ventilation abt. 6 air changes per hour basis empty hold.
Hold is fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
250
Water ballast capacity
1466
Fresh Water
25
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L20 1800 1000
Propeller
controle Pitch propeller
Bow thruster
250
