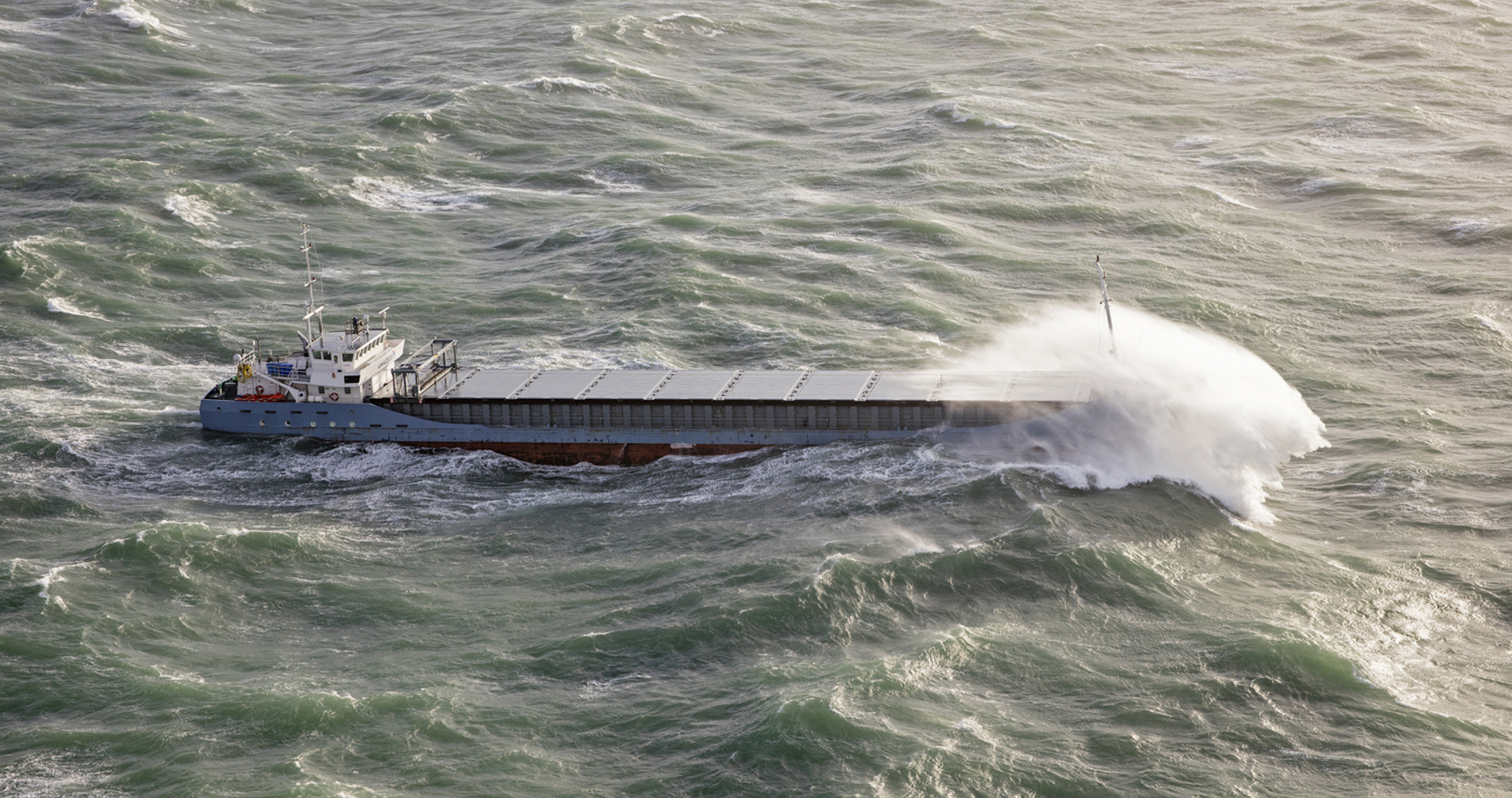

Westewind
Multipurpose Dry Cargo Carrier | Vessel | 1D
Length o.a.: 88.95 | Beam: 12.4
- Hold capacity (cbft)
- 150.000
- DWCC (t)
- 2.800
Key features
Number of vessels
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
ID
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Bureau Veritas
Class notations
1+HULL+MACH, General Cargo Ship, heavy cargo (150 kN/m2) Unrestricted Navigation. Heavy Cargo, ICE CLASS 1D, STRENGTHBOTTOM
Ice class
ID
Port of Registry
Wemeldinge
Flag
Dutch
DWAT
2.800
DWCC Summer
2.800
Length over all
88.95
Breadth over all
12.4
Draft summer
4.35
Draft in ballast
1.277
TPC SSW
10
Air draft in ballast
9.2
Depth (moulded)
5.65
Distance WL-HC in ballast
4.9
GT
2.080
NT
1.168
Cargo capacities
Total cubic feet capacity
150000 ft3 grain/bale
Holds/hatches
1 Hold/ 1 Hatch; both types are: fully box and double skinned.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Hold #1
Dimensions
62.4 x 10.24 x 6.7
Luiken
62.4 x 10.24 x 6.7
Electrical ventilaton
Hold ventilation abt. 6 air changes per hour basis empty hold. Hold is not fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
225
Water ballast capacity
1277
Fresh Water
33
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wartsila 8L20 1320 1000
Propeller
Ø 2300 mm, 4 blades, pitch propeller
Bow thruster
280
