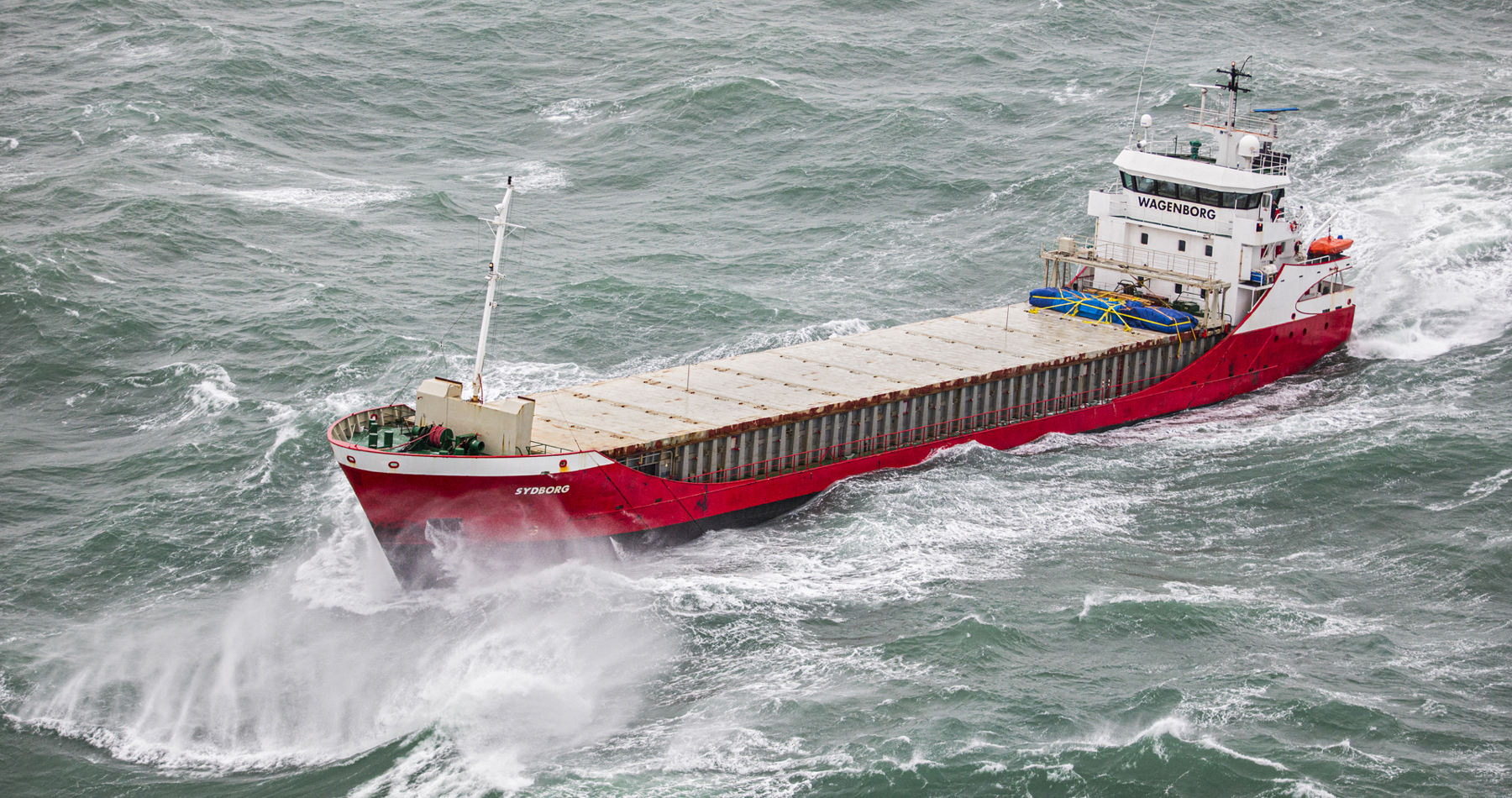

Kompass Class
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 89.25 | Beam: 13.3
- Hold capacity (cbft)
- 201.063
- DWCC (t)
- 3.900
Key features
Number of vessels
4
Flag
Dutch
Trading Area
Baltic & Continent
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Bureau Veritas
Class notations
I HULL MACH General Cargo ship -heavycargo (147 kN/m2) -equipped for carriage of containers, Unrestricted navigation, Ice class 1A, STRENGTHBOTTOM
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
4.170
DWCC Summer
3.900
Length over all
89.25
Breadth over all
13.3
Draft summer
6.022
Draft in ballast
1.600
TPC SSW
10.7
Air draft in ballast
29
Depth (moulded)
7.15
Distance WL-HC in ballast
6.5
GT
2.780
NT
1.587
Cargo capacities
Total cubic feet capacity
201063 ft3 grain/bale
Holds/hatches
1 Hold / 1 Hatc, type is: fully box, open hatch, double skinned. Vessel is equipped with 1 strongbeam, height below str
ongbeam abt. 4,16 m
Hold #1
Dimensions
62.4 x 11.16 x 8.62
Luiken
62.4 x 11.16 x 8.62
Electrical ventilaton
Hold ventilation abt. 6 air changes per hour basis empty hold.
Vessel is not fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
295
Water ballast capacity
1600
Fresh Water
40
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MaK 6M25 1800 750
Propeller
controllable pitch propeller - flap rudder
Bow thruster
240
Related ship series
3 Vessel
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 89.78 | Beam: 14
Hold capacity (cbft)
211.000
DWCC (t)
4.300
12 Vessel

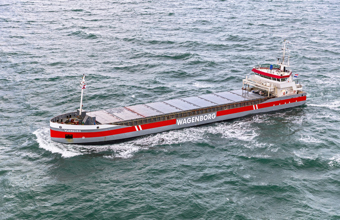

Super Saimax | 12 Vessel | Finnish/ Swedish 1C
