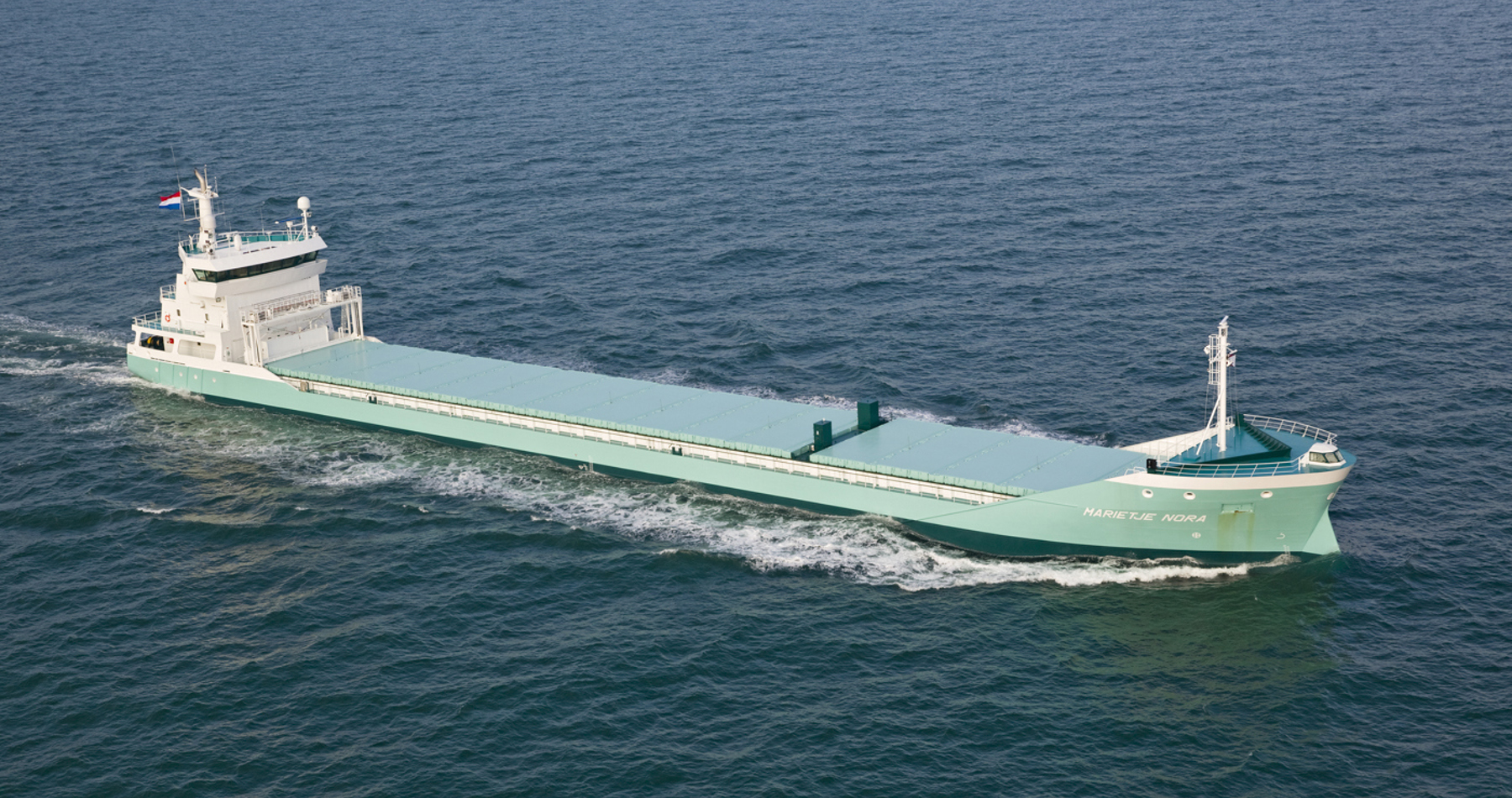

Marietje Nora
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 136.1 | Beam: 15.2
- Hold capacity (cbft)
- 387.241
- DWCC (t)
- 8.780
Key features
Number of vessels
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Barkmeijer Stroobos
Classification
Bureau Veritas
Class notations
I + HULL + MACH, General cargo ship -heavycargo ([inner bottom, 150 kN/m2]) Unrestricted navigation, +AUT-UMS, MON-SHAFT, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.068
DWCC Summer
8.780
Length over all
136.1
Breadth over all
15.2
Draft summer
6.968
Draft in ballast
3.692
TPC SSW
20
Air draft in ballast
25
Depth (moulded)
9.5
Distance WL-HC in ballast
6.5
GT
5.904
NT
2.863
Cargo capacities
Total cubic feet capacity
387241 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches. Both types: fully open hatch, fully box and double skinned.
The vessel is equipped with in hold 1 en 3, 2 cement holes in the hatches, Ø 46 cm innersize for loading Cement and Flya
sh.
Hold #1
Dimensions
30.6 x 12.8 x 9.15
Luiken
30.6 x 12.8 x 9.15
Hold #2
Dimensions
63.6 x 12.8 x 9.15
Luiken
63.6 x 12.8 x 9.15
Electrical ventilaton
Hold ventilation about 9 air changes per hour basis empty hold.
Vessel is equipped with dehumidifier system.
Tank capacities
HFO
274.14
MGO
220.3
Water ballast capacity
3691.5
Fresh Water
53.09
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAN B&W Diesel 9L27/38 2999 800
Bow thruster
400
Vessels in this series
- Marietje Andrea 2009
- Marietje Deborah 2011
- Marietje Marsilla 2010
- Marietje Nora 2015
