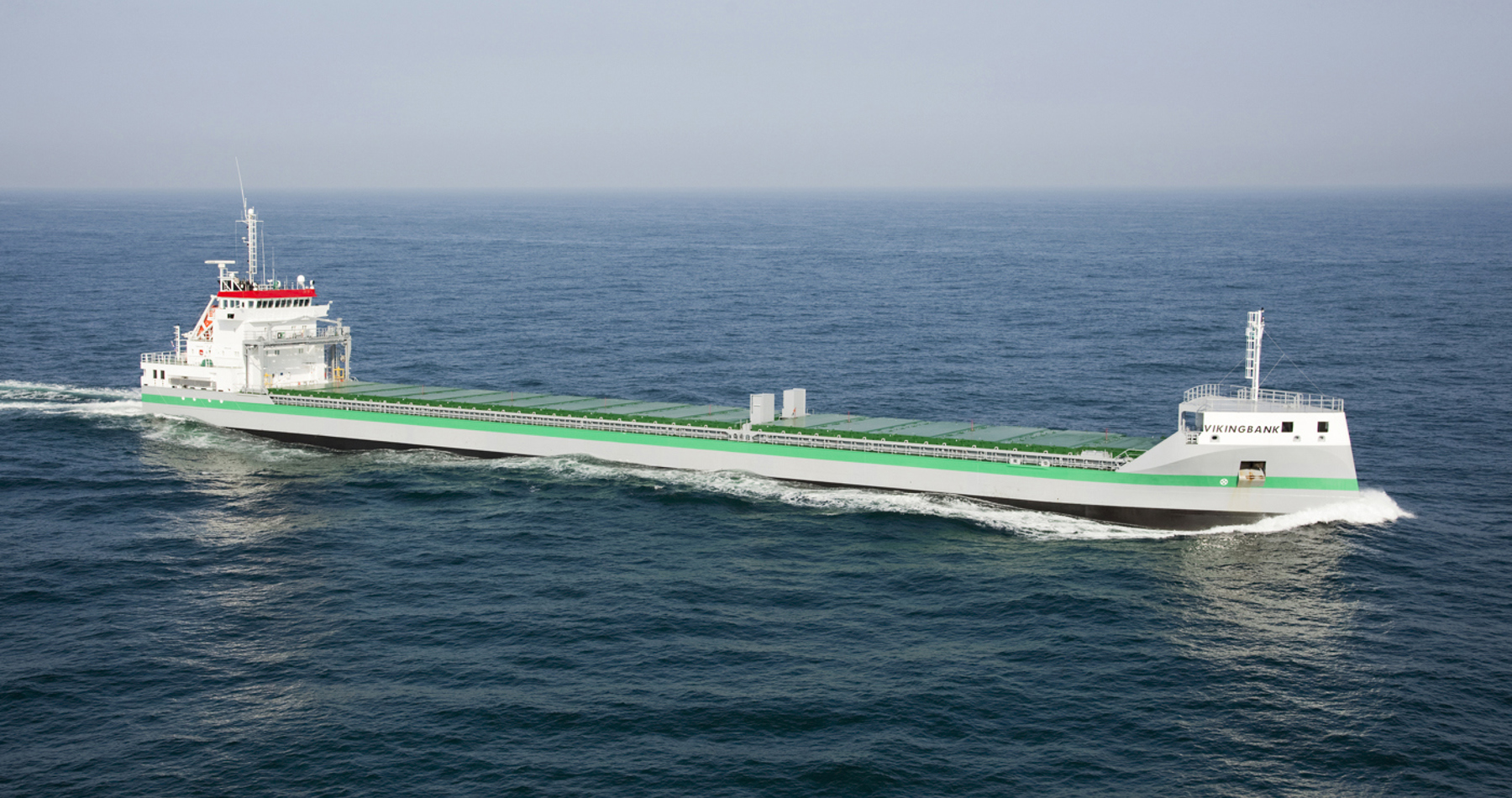

Vikingbank
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 142.65 | Beam: 15.87
- Hold capacity (cbft)
- 503.821
- DWCC (t)
- 11.300
Key features
Number of vessels
3
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Ferus Smit B.V.
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo(147 kN/m2); Container ship Unrestricted navigation +AUT-UMS, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
11.940
DWCC Summer
11.300
Length over all
142.65
Breadth over all
15.87
Draft summer
7.729
Draft in ballast
5.300
TPC SSW
21.4
Air draft in ballast
30.6
Depth (moulded)
10.78
Distance WL-HC in ballast
7.9
GT
7.367
NT
3.688
Cargo capacities
Total cubic feet capacity
503821 ft3 grain/bale
Holds/hatches
2 Holds/ 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box s
tructures in fore and aft part due to vessel's outer shape.
Hold #1
Dimensions
41 x 13.2 x 10.78
Luiken
41 x 13.2 x 10.78
Hold #2
Dimensions
63.63 x 13.2 x 10.78
Luiken
63.63 x 13.2 x 10.78
Electrical ventilaton
Holds are equipped with electrical ventilation, 8 air changes per hour basis empty holds, both holds are fitted with deh
umidifier system.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Tank capacities
HFO
530
MGO
39.8
Water ballast capacity
5300
Fresh Water
53
Speed/consumption
Not available
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 8M32C 4000 750
Propeller
Var. Pitch, Ø 4000 mm. 4 blade, CPP Berg Pitch
Bow thruster
600
Vessels in this series
- Vikingbank 2012
- Vlieborg 2012
- Volgaborg 2013
