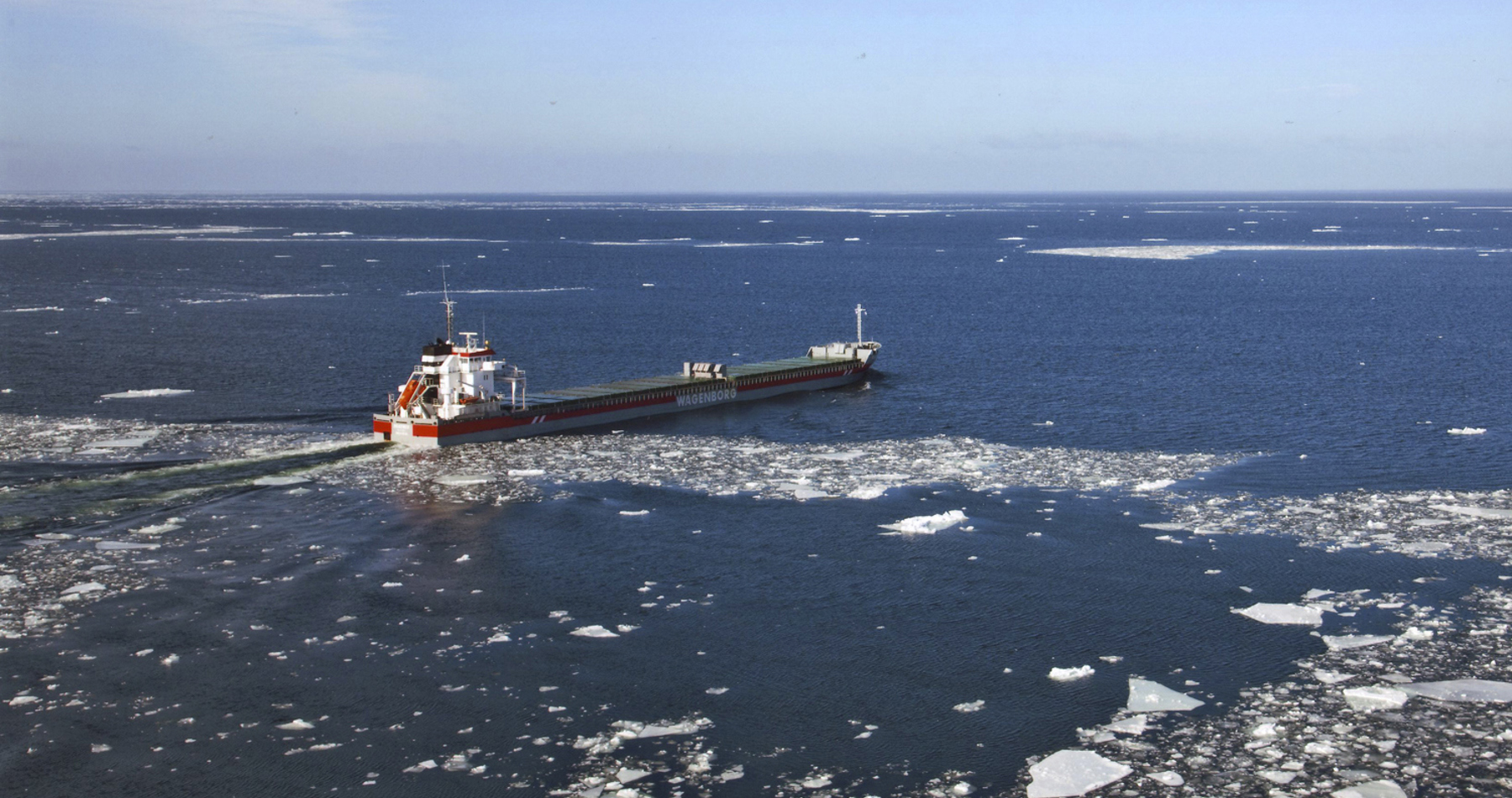

Beatrix
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 154.6 | Beam: 17.2
- Hold capacity (cbft)
- 606.781
- DWCC (t)
- 13.500
Key features
Number of vessels
6
Flag
Dutch
Trading Area
Europe & Atlantic
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Ferus Smit Leer GmbH
Classification
Bureau Veritas
Class notations
1 {HULL { MACH General cargo ship Container ship Unrestricted navigation { AUT-UMS, { SYS-NEQ, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
14.595
DWCC Summer
13.500
Length over all
154.6
Breadth over all
17.2
Draft summer
8.19
Draft in ballast
6.060
TPC SSW
24.65
Air draft in ballast
29
Depth (moulded)
11.55
Distance WL-HC in ballast
8.5
GT
8.911
NT
4.419
Cargo capacities
Total cubic feet capacity
606781 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches, both types are: Fully openhatch - no understow. Fully box and double skinned. Fully square - except
box structures due to vessel's outer shape.
Hold #1
Dimensions
50.4 x 14.34 x 11.47
Luiken
50.4 x 14.34 x 11.47
Hold #2
Dimensions
61.6 x 14.34 x 11.47
Luiken
61.6 x 14.34 x 11.47
Electrical ventilaton
Holds are equipped with elecrtical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de
humidifier system.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Tank capacities
HFO
998
MGO
61
Water ballast capacity
6059.8
Fresh Water
60.2
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L32C 4500 750
Reduction gear
1 x Flender
Propeller
Single ccp, 4 blades with nozzle, Ø 4200mm
Bow thruster
640
