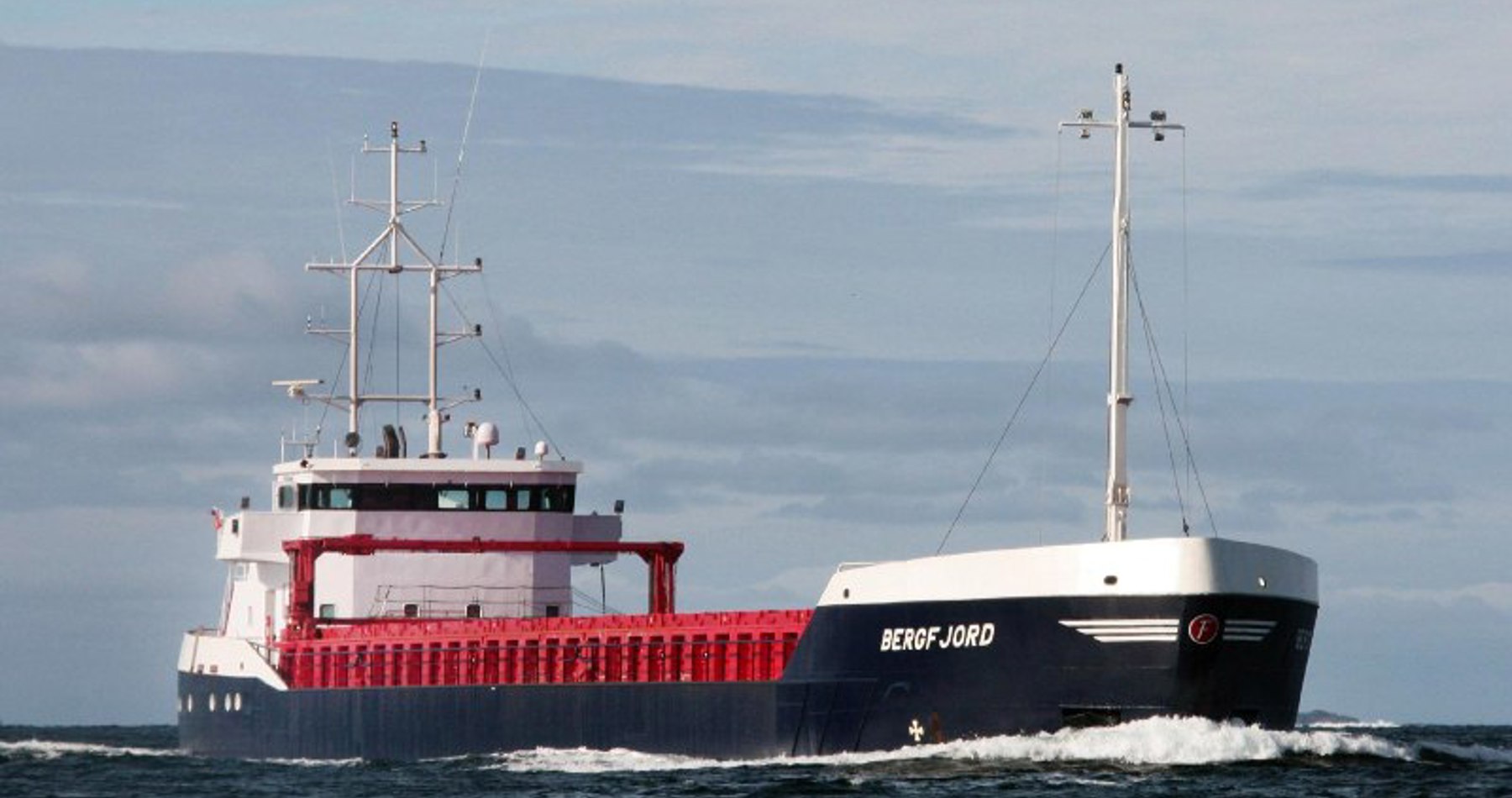

Bergfjord
Multipurpose Dry Cargo Carrier | Vessel |
Length o.a.: 87,89 | Beam: 12,30
- Hold capacity (cbft)
- 172.000
- DWCC (t)
- 3.600
Key features
Number of vessels
5
Flag
Dutch
Trading Area
European continent
Open hatch, fully box
Ice class
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Daewoo Mangalia Heavy Industries SA
Classification
Bureau Veritas
Class notations
I ✠ HULL ✠ MACH, General cargo ship, Unrestricted navigation, ✠ AUT-UMS, ✠ ICE CLASS IB
Port of Registry
Delfzijl
Flag
Dutch
DWAT
3.769
DWCC Summer
3.600
Length over all
87,89
Breadth over all
12,30
Draft summer
5,60
Air draft in ballast
10,5
Depth (moulded)
7,65
Distance WL-HC in ballast
6,00
GT
2.451
NT
1.294
Cargo capacities
Total cubic feet capacity
172000 ft3 grain/bale
Holds/hatches
1 Hold / 1 Hatch, type is fully open hatch, fully boxed and double skinned. Vessel is equipped with pontoon hatchcovers.
Hold #1
Dimensions
58,80 x 10,28 x 8,15
Luiken
58,80 x 10,28 x 8,15
Electrical ventilaton
The vessel is equipped with ventilation system in hold.
Tank capacities
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010 DMA. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Stork-Wärtsilä 8FHD 240G 1470 kW
