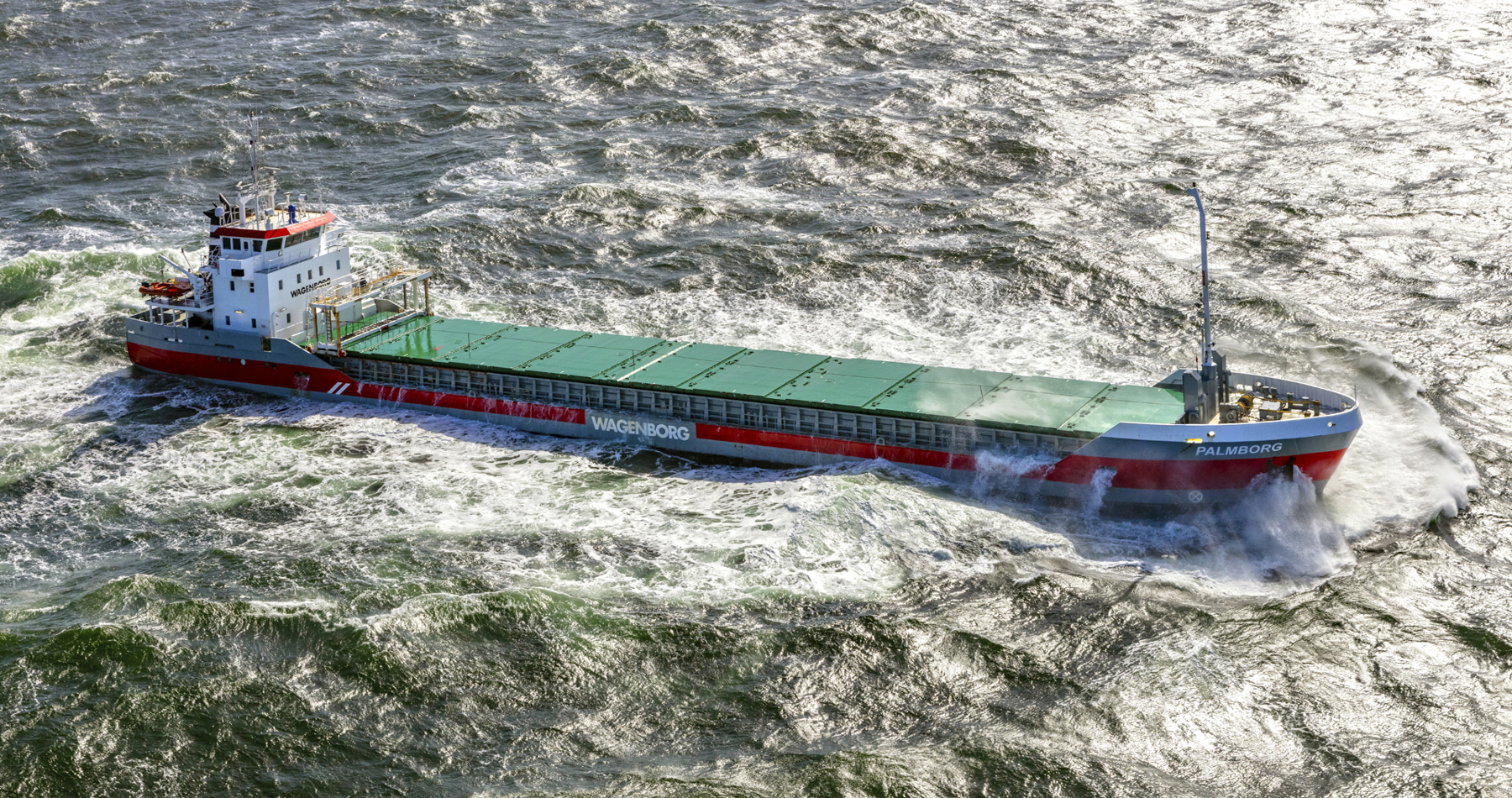

Veka Class

Veka Class

Multipurpose Dry Cargo Carrier | 8 Vessel | Finnish Ice class II
Length o.a.: 88.97 | Beam: 11.8
Hold capacity (cbft)
158.985
DWCC (t)
3.458
Contact your local chartering office

Key features

Number of vessels 8
Flag Dutch
Trading Area
Open hatch, fully box
Ice class FSII
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Bijlsma Shipyard B.V.
Classification
Bureau Veritas
Class notations
I + HULL + MACH, General cargo ship; Container ship, Heavy cargo, Inner bottom fr 37-46 118 kN/m2, Inner bottom fr 91-100 118 kN/m2, Unrestricted Navigation + AUT-UMS, Strengthbottom
Ice class
FSII
Port of Registry
Delfzijl
Flag
Dutch
DWAT
3.609
DWCC Summer
3.458
Length over all
88.97
Breadth over all
11.8
Draft summer
5.4
Draft in ballast
1.282
TPC SSW
9.91
Air draft in ballast
18
Depth (moulded)
6.9
Distance WL-HC in ballast
5.5
GT
2.281
NT
1.229

Cargo capacities

Total cubic feet capacity
158985 ft3 grain/bale

Holds/hatches

1 hold/ 1 hatch: both types are fully open hatch - no understow. Fully box and double skinned (ext. narrowing fore/aft.
part)

Cement Holes
Positions of cement holes in the following hatches on starboard side:
Hatch no 1 and 10 : 1,65 m of front hatch and 4,40 m of site hatch.
Positions of cement holes in the following hatches on port side:
Hatch no 4 and 8 : 1,65 m of front hatch and 4,40 m of site hatch.

Cement holes by dm
Outside 58 cm
inside 47 cm

Each hole: 12 bolts M24.
Length of bolt 13,5 cm.

Hold #1

Dimensions
63 x 9.6 x 7.5
Luiken
63 x 9.6 x 7.5

Electrical ventilaton

Hold ventilation abt. 9 air changes per hour basis empty hold.
Hold is fitted with dehumidifier system

Tank capacities

HFO
225
MGO
35
Water ballast capacity
1282
Fresh Water
44

Fuel oil specification

MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operartion to be responsible for sulphur limit compliance

Engines

Main engine
Wartsila 8L20 1440 1000
Bow thruster
250
