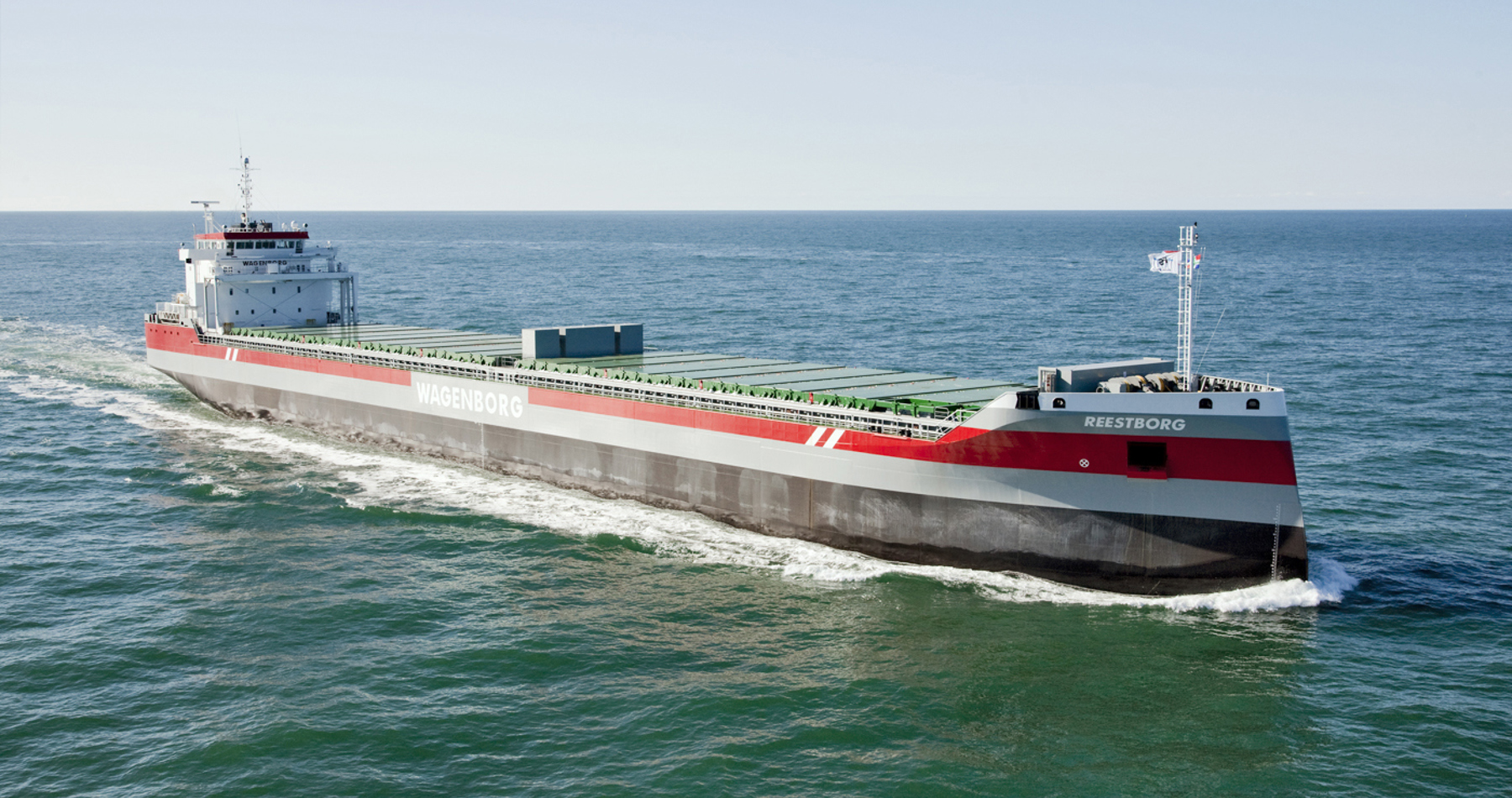

Reestborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 169.75 | Beam: 20.4
- Hold capacity (cbft)
- 945.000
- DWCC (t)
- 22.000
Key features
Number of vessels
3
Flag
Dutch
Trading Area
Europe & Atlantic
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Ferus Smit Leer GmbH
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship Container ship Unrestricted navigation +AUT-UMS, +SYS-NEQ, ICE CLASS IA, INWATERSURVEY
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
23.296
DWCC Summer
22.000
Length over all
169.75
Breadth over all
20.4
Draft summer
9.718
Draft in ballast
10.093
TPC SSW
32.5
Air draft in ballast
32.54
Depth (moulded)
13.75
Distance WL-HC in ballast
10
GT
14.141
NT
6.853
Cargo capacities
Total cubic feet capacity
945000 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box
structures in fore and aft part due to vessel's outer shape.
Hold #1
Dimensions
60.59 x 17 x 13.55
Luiken
60.59 x 17 x 13.55
Hold #2
Dimensions
60.59 x 17 x 13.55
Luiken
60.59 x 17 x 13.55
Electrical ventilaton
Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de
humidifier system.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Tank capacities
HFO
1066
MGO
120
Water ballast capacity
10093
Fresh Water
101
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L32C 4500 750
Reduction gear
Flender (Siemens) GUCP 1120
Propeller
Single CCP, 4 blade with nozzle, 47500mm, 110 rpm
Bow thruster
860
